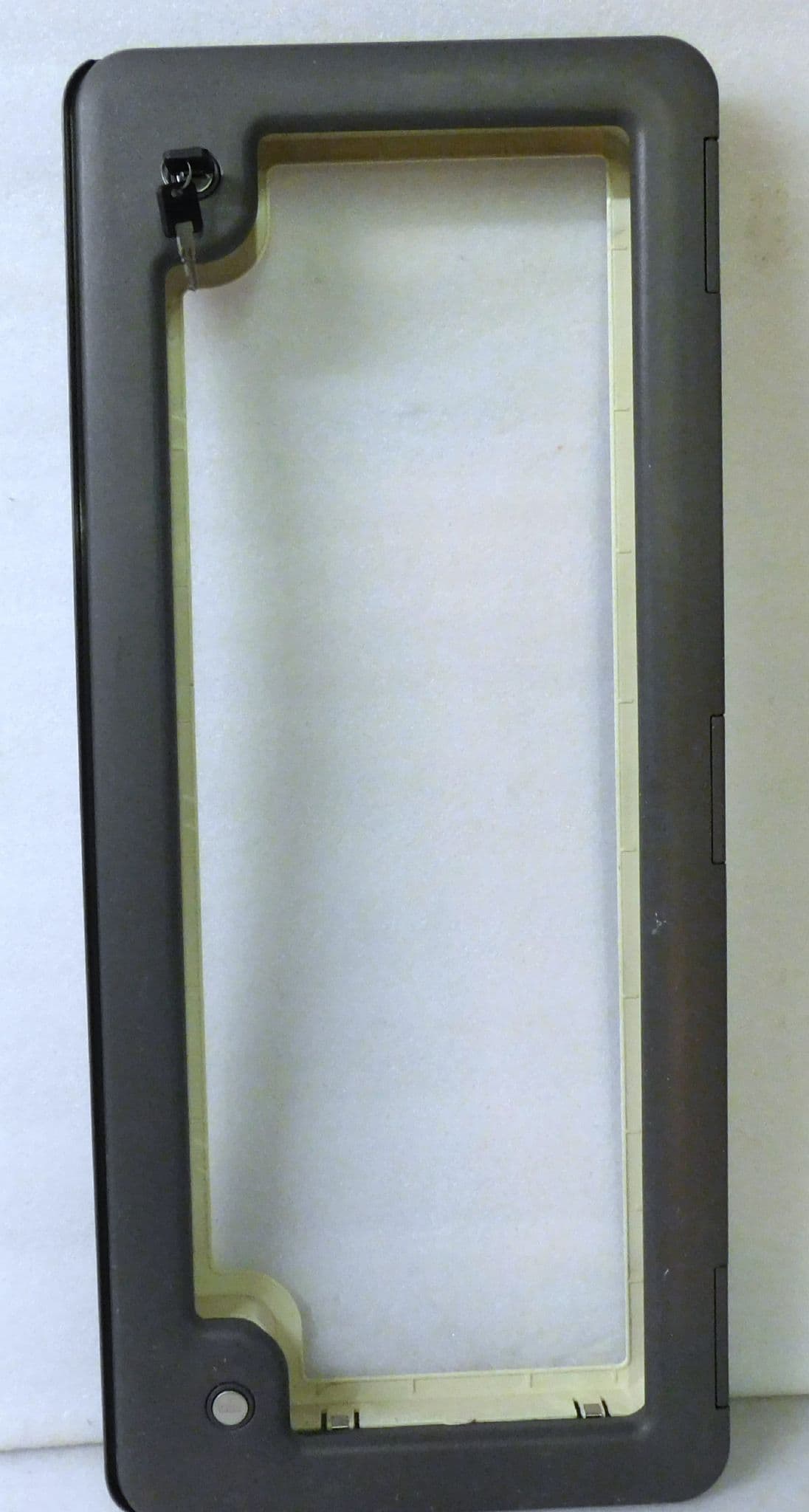

Thetford Service Door frame 5 GREY
Motorhome camper van Service Door frame 5 is suitable for access to the water tank or as general luggage door.Comes with keys & barrel
2682522 E042T1000436 LIMITED GREY
SURPLUS STOCK
With Thetford Service Doors, you can create extra and easy access to certain areas in your caravan or motor home. All models are produced using high-grade, lightweight plastics,Cream fix frame (unseen from outside) making them extremely durable. C/W Keys & Barrels. Unboxed.Surplus, may have marks due to storage.
CENTRE PANEL IS NOT INCLUDED, AND IS USUALLY THE CUT OUT PART FOR THE DOOR
Technical specifications
| Service Door 5 | |
| Main dimensions (HxW) (mm) | 785 x 340 |
| Daylight opening (HxW) (mm) | 730 x 280 |
| Cut-out dimensions (HxW) (mm) | 749 x 297 |
| Possible wall thickness (mm) | 23 – 39 |
| Lock holder /buttons | 2 lock holders (incl. cylinder ZADI) |
| Rain diverter | Yes |
| Hinge position | Bottom or side |
| Weight (kg) | 1,5 |
